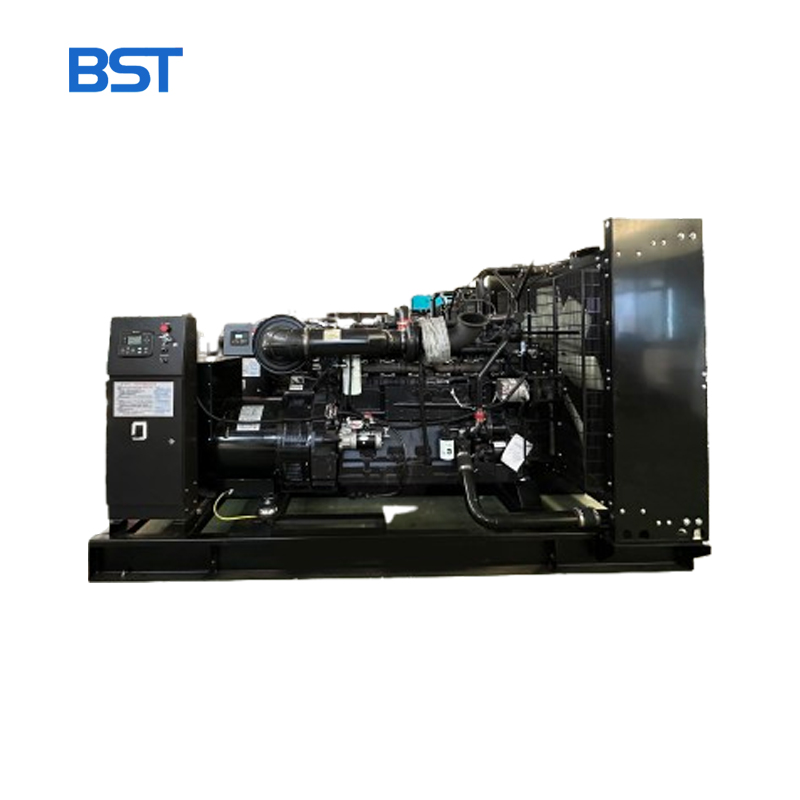

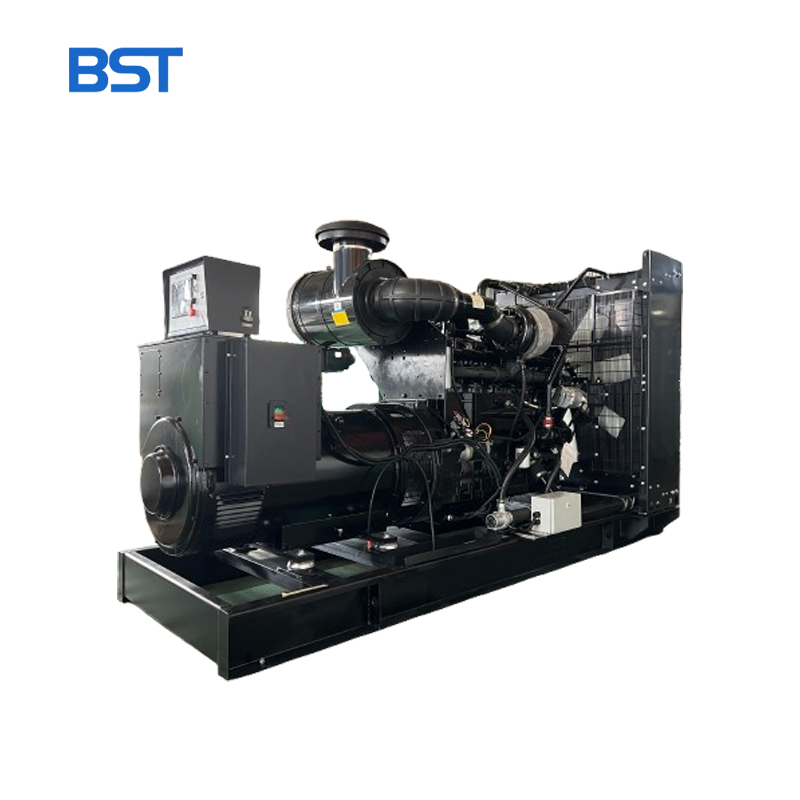

High Performance 220V 380V Open Frame Type Cummins Engine Diesel Generator
For the Diesel generators we have many models for customers' choice, you can choose famous motor brands below：
1.Multiple Models for Option:
Besten can not only supply the Diesel generator for Family or personal using from 10kva, 20kva, 50kva ect., but can also supply the heavy duty industrial Diesel generators like 800kw, 1000kw, 2000kw or bigger, which can solve the plant power supply problems. Just tell us your requirements we can offer you a solution plan.
2.Smart Control System
Adopt BST intelligent module. When the city power is cut off (or other units start signal), the unit will automatically start (1 to 8 times adjustable, first start success rate > 99%) after delay confirmation (0~30s adjustable), and supply power to the load after automatically confirming that the generator set is powered normally. After the city power is restored to normal, it will automatically cool down and stop (0-300s adjustable) after delay confirmation (0~30s adjustable). It also has basic protection functions, digitally displaying parameters such as voltage, current, frequency, running time, battery, voltage, speed, etc.
3. Safety Protection System
Leakage protection: With a highly safe NFB (non-fuse) leakage protection device. When it senses leakage, it will instantly cut off the circuit and alarm. The device also has an overload protection function.
High Temp. protection: With high temperature marks and alarms where with high temp, operations on the touch screen without the directly touch with the generator.
Automatic alarm: With a monitoring system and an emergency stop device. The alarm adopts light and sound , which is durable and reliable. The emergency shutdown circuit to completely eliminate the risk of electric shock that may occur during restarting.

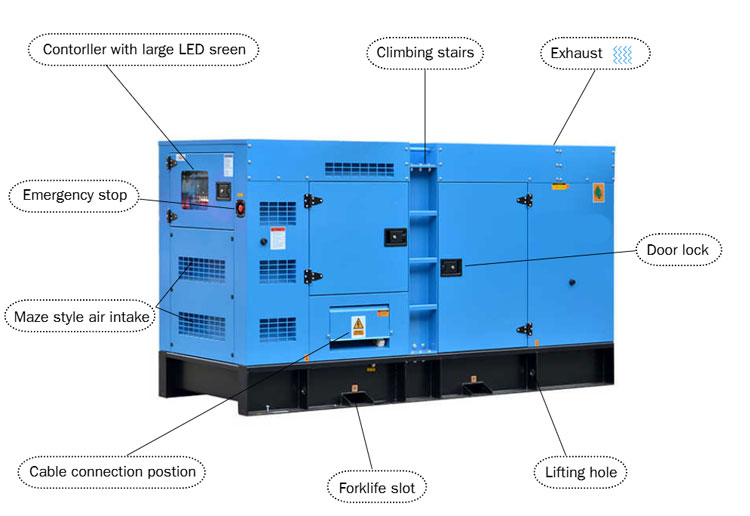

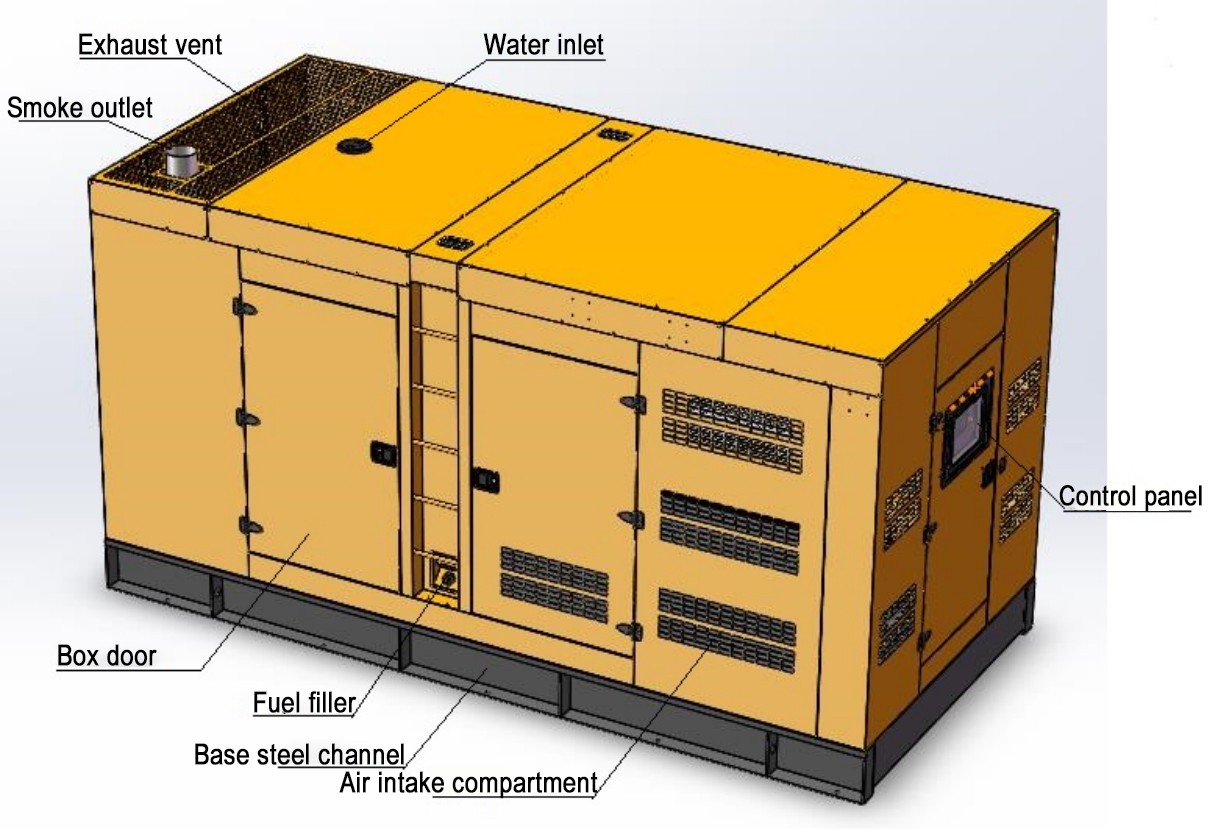

4.Special silent design
Good acoustic effect:
Excluding external noise, 7 meters outside the power station is
about 75 decibels.
Corrosion protection:Cold-rolled steel body with Zinc phosphate and polyester powder coating for a long-lasting new look;
Convenient transportation:
Skeleton structure, modular design;
High-strength soundproof box chassis;
Lifting lugs are set on the top of the soundproof box;
Parameters
| Model No. | BST2500DCE | BST3500DCE | BST6500DCE | BST7500DCE | BST8500DCE | BST12000DCE |
| Rated Frequency (Hz) | 50/60Hz | |||||
| Rated Voltage (V) | 220V/380V/400V | |||||
| Maximum Power (KW) | 2 | 3 | 5 | 5.5 | 6.5 | 10 |
| Rated Power (KW) | 1.8 | 2.8 | 4.5 | 5 | 6 | 9 |
| Phase | Single Phase/ Three-phase | |||||
| Construction Type | Open Frame Type | |||||
| Fuel Tank Capacity (L) | 12.5 | 12.5 | 12.5 | 12.5 | 25 | 25 |
| Bore*Stroke (mm) | 70*55 | 78*62 | 86*70 | 88*75 | 92*75 | 92*75 |
| Displacement (cc) | 211 | 296 | 418 | 456 | 498 | 498 |
| Engine Types | Single cylinder, air-cooled, four stroke | Two-cylinder, air-cooled, four stroke | ||||
| Ignition System | Compression combustion | |||||
| Noise Level (dB) | 77 | 77 | 77 | 77 | 84 | 84 |
| Weight (KG) | 58 | 74 | 95 | 100 | 105 | 170 |
| Size (mm) | 760*520*620 | 760*520*621 | 760*520*622 | 760*520*623 | 760*520*624 | 885*650*740 |
Q: Can you customize the diesel generators to meet our country’s voltage and frequency standards?
A: Yes, we can customize units to match local electrical standards, including 50hz/60hz frequency and different voltage levels.
Q: What packaging methods do you use to protect diesel generators during long-distance shipping?
A: We use sturdy wooden crates with corrosion protection and secure internal bracing to prevent damage during sea or air transport.
Q: What warranty do you provide for exported diesel generators?
A: We offer a standard one-year warranty or 1000 operational hours, whichever comes first, with global after-sales support.
Q: Do you provide technical support and training after the generator is shipped?
A: Yes, we offer remote technical support, operation manuals in multiple languages, and can arrange onsite training if required.
