Factory Direct Price Portable Silent Diesel Generators for Mobile Power Station
For the Diesel generators we have four types for you to choose:

1.High Efficiency and Energy Saving
Equipped with a high-pressure common rail fuel system, fuel consumption is as low as 185g/kW·h (saving 18% compared with traditional models), and with the ECO intelligent speed control mode, light-load fuel consumption is further reduced by 12%.
Low emission technology: Standard SCR+DPF post-treatment system, nitrogen oxide emissions ≤3.5g/kW·h (meeting non-road National III/Euro V emission standards).

2. Safety Protection System
Leakage protection: Equipped with high-safety NFB (no fuse) leakage protection device. When leakage is detected, the circuit will be immediately cut off and an alarm will be sounded.
High temperature protection: There are high temperature marks and alarms in the high temperature area, and users can operate through the touch screen without direct contact with the generator.
Automatic alarm: Equipped with a monitoring system and emergency stop device. The alarm device uses sound and light alarms, which is durable and reliable.

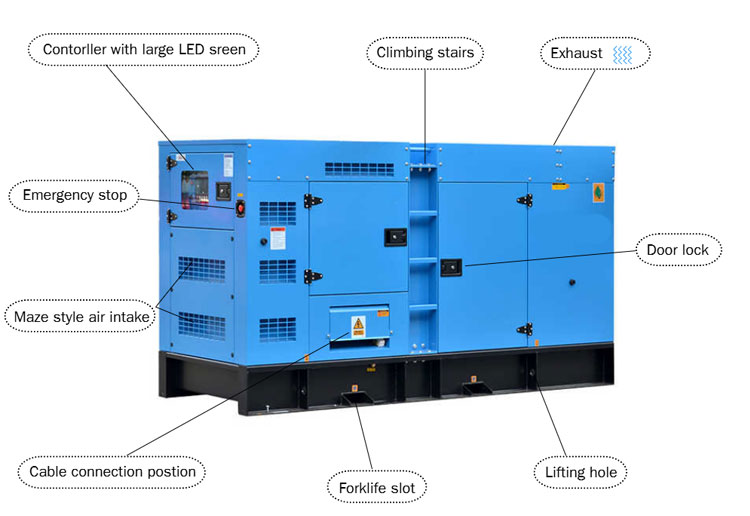

3. Special Silent Design
Good acoustic effect: exclude external noise, about 75 decibels within 7 meters outside the power station.
Anti-corrosion: cold-rolled steel body, zinc phosphate and polyester powder coating, keep the new appearance for a long time;
Convenient transportation: skeleton structure, modular design; high-strength soundproof box chassis;
Parameters
Product Model | BST-30 | BST-40 | BST-50 | BST-60 | BST-80 |
Rated Output Power (KW) | 3KW | 5KW | 6KW | 8KW | 10KW |
Rated AC Voltage (V) | 110V/220V | 110v/220v/380V | |||
Rated Frequency (Hz) | 50Hz/60Hz | ||||
Engine Speed(R.P.M) | 3000 rmp | ||||
DC Output (V/A) | 12V/8.3A | ||||
Starting System | Automatic Start, Recoil Start, Remote Start, Electric Start | ||||
Noise Level(dB) | 80~85dB | ||||
Continuous Operating Time (hr) | 15 | 14 | 13 | 12 | 11 |
Engine Type | Single cylinder, vertical, four-stroke air-cooled diesel engine | ||||
Displacement(cc) | 296cc | 418cc | 456cc | 490cc | 530cc |
Bore*Stroke (mm) | 73*70mm | 88*72mm | 90*75mm | 92*75mm | 95*75mm |
Fuel Consumption (g/KW.h) | 295 | ||||
Fuel Types | No.0 or No. -10 Light Diesel, No.0 or No. -10 Clean Diesel | ||||
Fuel System | Direct Injection | ||||
Standard Configuration | Voltmeter, AC Output Socket, AC Circuit Breaker, Oil Alarm Voltmeter, AC Socket | ||||
Function Options | Four-sided Wheels, Digital Instrument, ATS, CNC Meter, Remote Start | ||||
Packing Size (mm) | 1100*600*800mm | ||||
Gross Weight (KG) | 150KG | 155KG | 160KG | 165KG | 170KG |
