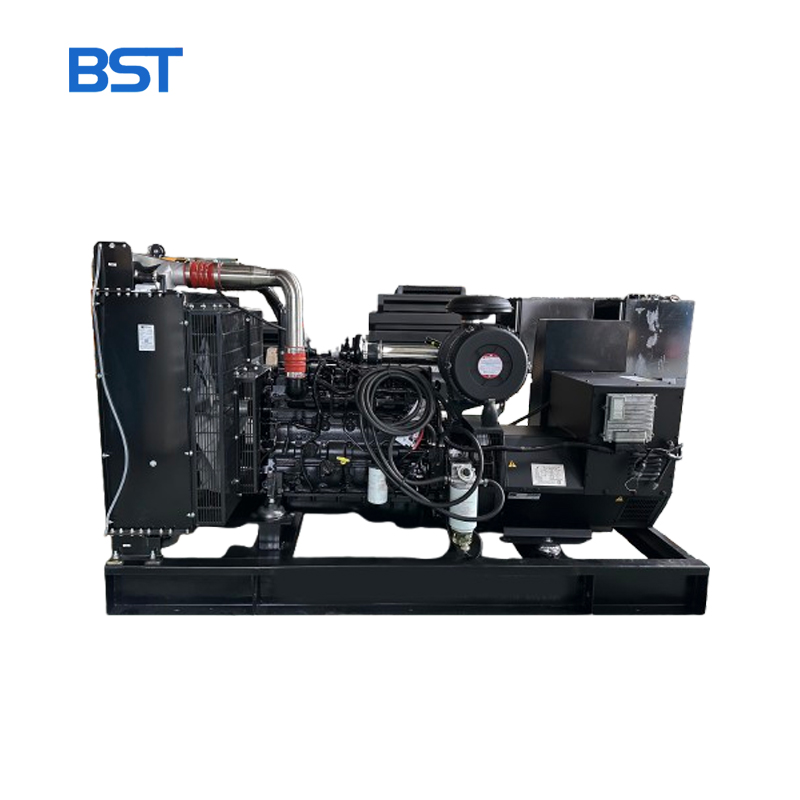

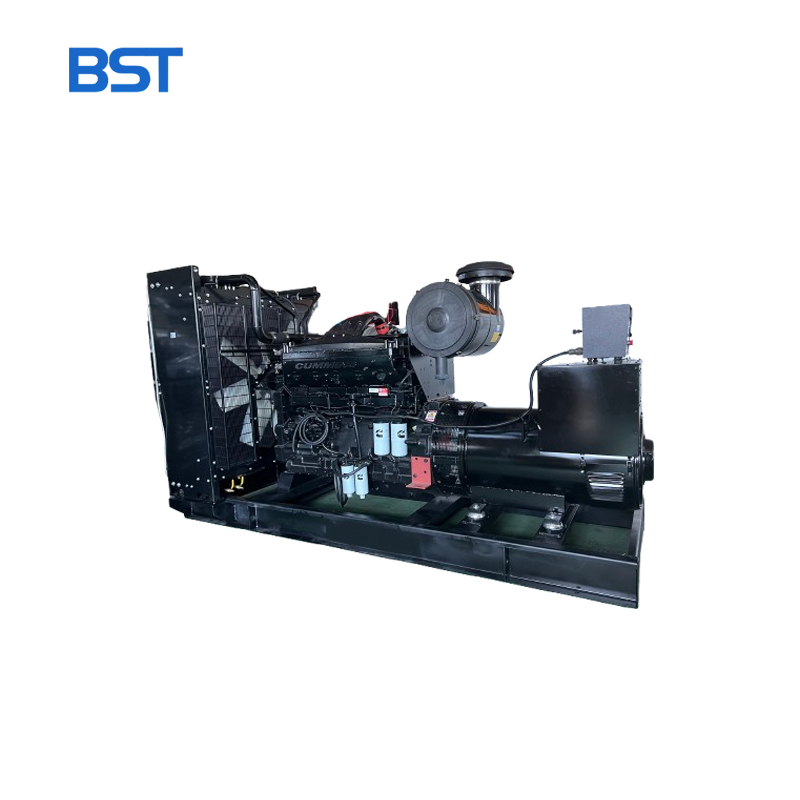

Factory Direct Price 200kw 300kw Three-phase Cummins Weichai Engine Diesel Generator Set
1.Multiple Models for Option:
Besten can not only supply the Diesel generator for Family or personal using from 10kva, 20kva, 50kva etc., but can also supply the heavy duty industrial Diesel generators like 800kw, 1000kw, 2000kw or bigger, which can solve the plant power supply problems. Just tell us your requirements we can offer you a solution plan.
2.Smart Control System
Adopt BST intelligent module. When the city power is cut off (or other units start signal), the unit will automatically start (1 to 8 times adjustable, first start success rate > 99%) after delay confirmation (0~30s adjustable), and supply power to the load after automatically confirming that the generator set is powered normally. After the city power is restored to normal, it will automatically cool down and stop (0-300s adjustable) after delay confirmation (0~30s adjustable). It also has basic protection functions, digitally displaying parameters such as voltage, current, frequency, running time, battery, voltage, speed, etc.
3. Safety Protection System
Leakage protection: With a highly safe NFB (non-fuse) leakage protection device. When it senses leakage, it will instantly cut off the circuit and alarm. The device also has an overload protection function.
High Temp. protection: With high temperature marks and alarms where with high temp, operations on the touch screen without the directly touch with the generator.
Automatic alarm: With a monitoring system and an emergency stop device. The alarm adopts light and sound , which is durable and reliable. The emergency shutdown circuit to completely eliminate the risk of electric shock that may occur during restarting.
4.Special Silent Design
Good acoustic effect:
Excluding external noise, 7 meters outside the power station is
about 75 decibels.
Corrosion protection:Cold-rolled steel body with Zinc phosphate and polyester powder coating for a long-lasting new look;
Convenient transportation:
Skeleton structure, modular design;
High-strength soundproof box chassis;
Lifting lugs are set on the top of the soundproof box;
Parameters
| Genset Parameters | ||||||||
| Genset Model | Prime Power | Standby Power | Prime Current (A) | Standby Current (A) | Net Weight (KG) | Overall Dimensions L*W*H (m) | ||
| KW | KVA | KW | KVA | |||||
| BST-120GF | 120 | 150 | 132 | 165 | 216 | 237.6 | 1602 | 2.5*1.12*1.47 |
| BST-160GF | 160 | 200 | 176 | 220 | 288 | 316.8 | 1695 | 2.8*0.9*1.69 |
| BST-200GF | 200 | 250 | 220 | 275 | 360 | 396 | 1895 | 2.87*0.9*1.69 |
| BST-280GF | 280 | 350 | 320 | 400 | 504 | 576 | 2775 | 3.4*1.13*2.02 |
| BST-320GF | 320 | 400 | 360 | 450 | 576 | 648 | 2925 | 3.4*1.13*2.06 |
| BST-364GF | 364 | 455 | 400 | 500 | 655.2 | 720 | 3450 | 3.76*1.13*2.06 |
| BST-400GF | 400 | 500 | 440 | 550 | 720 | 792 | 3570 | 3.76*1.13*2.06 |
| BST-480GF | 480 | 600 | 528 | 660 | 864 | 950.4 | 3975 | 3.76*1.54*2.13 |
| BST-520GF | 520 | 650 | 560 | 700 | 936 | 1008 | 4075 | 3.76*1.54*2.13 |
| BST-600GF | 600 | 750 | 660 | 825 | 1080 | 1188 | 6395 | 4.28*1.91*2.28 |
Our product portfolio includes diesel generators ranging from small portable units to large industrial generator sets. This diversity allows us to serve multiple sectors including residential backup, commercial facilities, heavy industry, and emergency power applications with tailored products.
Q: Are you a manufacturer or a trading company?
A: We are an ISO-certified manufacturer with 15 years of expertise.
Q: Which engine and alternator brands do you use?
A: We support top brands like Cummins/Weichai/Yuchai engines and Stamford/Leroy-Somer alternators, with custom OEM options.
Q: What is the voltage and frequency of your diesel generator?
A: Our generators provide global-ready power: 110V-415V (±1% stability) with 50Hz/60Hz auto-switching. Certified for ISO, UL, and IEC standards. Custom high-voltage/dual-frequency models on request.
